BIGTREETECH Manta M8P V1.1 Control Board 32Bit, Integrated Motherboard…

Price: $72.99
(as of May 16, 2025 19:12:11 UTC – Details)

From the brand

Our 3D control boards and 3D printer accessories products can not only provide a powerful aid to your 3D printing career, but also provide a challenge to your 3D printing technology experience.

It can also increase your entertainment experience when you are playing 3D printing in your usual free time.

Upgrade Klipper Control Board

Stealthy High Speed Solution

Support Run Klipper Firmware

Design For Voron 3D Printer

BIGTREETECH Control Board DIY

Stepper Drive From BIGTREETECH

BIQU Steel Build Plate

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 6.69 x 4.04 x 4.04 inches; 10.93 ounces
Item model number ‏ : ‎ KINGPRINTER-1020000392
Date First Available ‏ : ‎ July 28, 2022
Manufacturer ‏ : ‎ BIGTREETECH
ASIN ‏ : ‎ B0B7W53JSY
Country of Origin ‏ : ‎ China

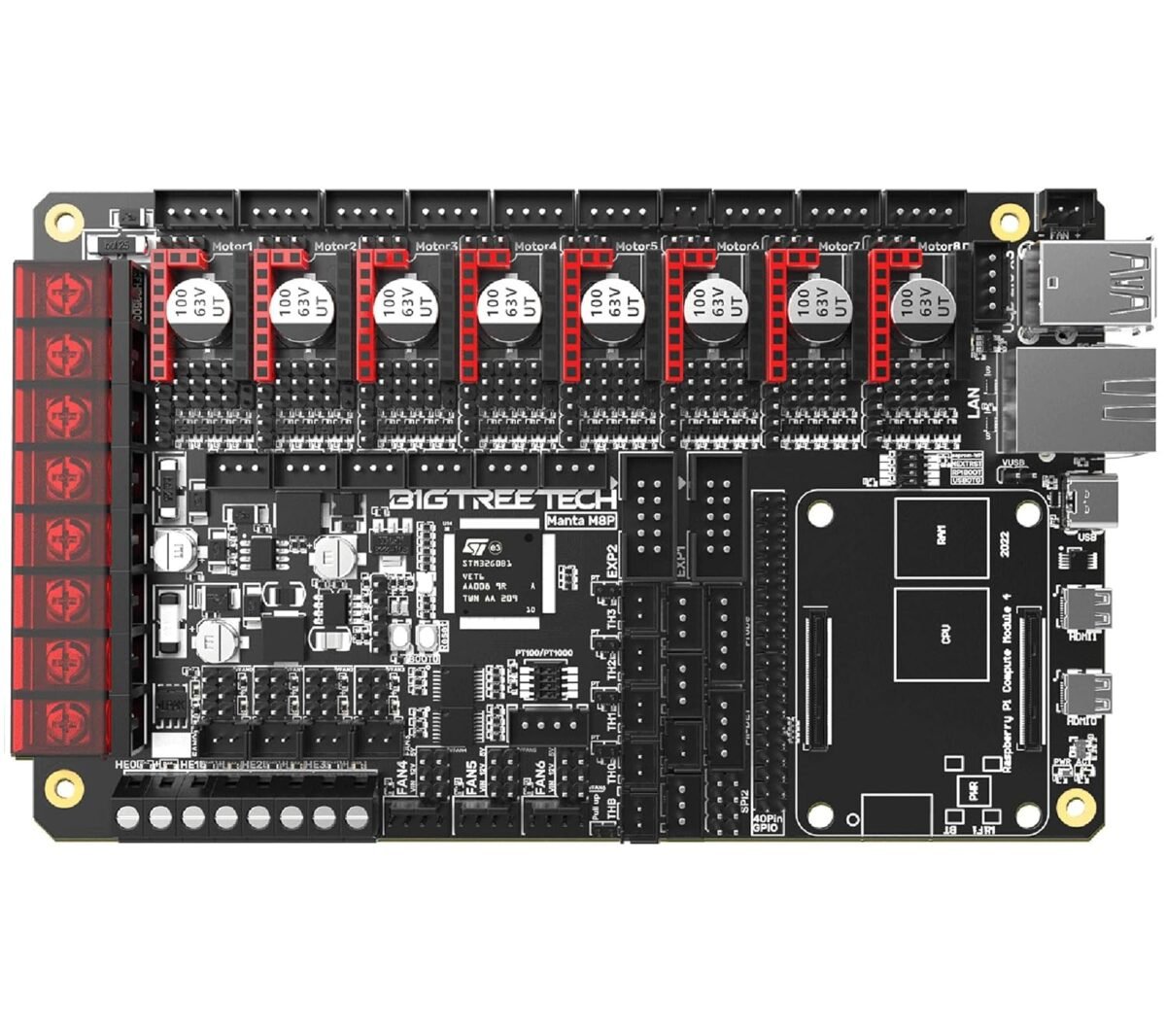

BIGTREETECH Manta M8P Control Board uses 32-bit ARM Cortex-M0+ series STM32G0B1VET6 main control chip with a core frequency of 64MHz. High-performance MOSFETs are used to reduce heat generation
The power chip of Manta M8P integrated main control board adopts TPS5450-5A, which supports DC12/24V power input; the output current of this chip is up to 5A, and the peak value can reach 6A, which perfectly supports the power supply of Raspberry-Pi

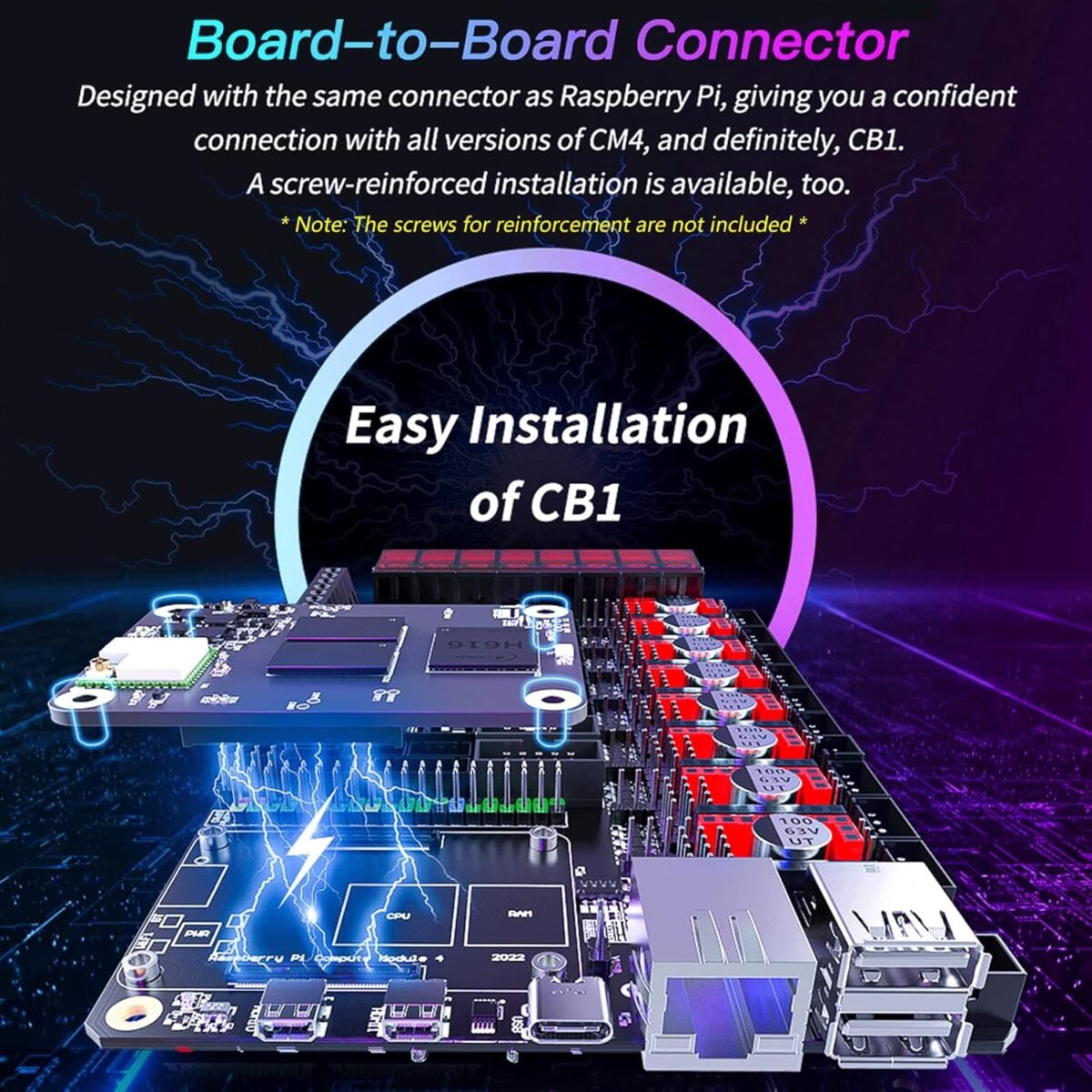

The control board and the core board use BTB connection method, so that other core board solutions other than CM4 can be selected, such as BIGTREETECH CB1. The mainboard reserves the SPI expansion interface for using the Klipper firmware to connect an external acceleration sensor for acceleration compensation
The thermistor can select the pull-up resistance value through the jumper, which supports PT1000 without external modules, which is convenient for DIY use; the control board reserves a three-way four-wire fan interface, which can be used to connect a water cooling device
The MCU firmware can be upgraded through SD card, or through DFU through Klipper’s make flash command; the main board reserves the proximity switch interface, supports NPN and PNP type selection, (24V, 12V, 5V) voltage optional, shared with VFAN6 Voltage selection
