Industrial Serial to Fiber Media Converter, 10/100M Ethernet to 100Bas…

Price: $116.10
(as of Oct 15, 2025 05:20:13 UTC – Details)

Product description

Overview

The ZP-IMCRS1100-SFP is a compact industrial media converter, supporting 10/100Base-T Ethernet to 100Base-FX fiber, along with a serial port for RS232/RS485/RS422 communication.

Built with a rugged aluminum case, it features -40°C to +75°C operating temperature and providing advanced surge and ESD protection, making it perfect for remote monitoring, industrial control, and surveillance systems. It also equips with LED indicators for quick diagnostics, it is a reliable choice for industrial fiber network deployment.

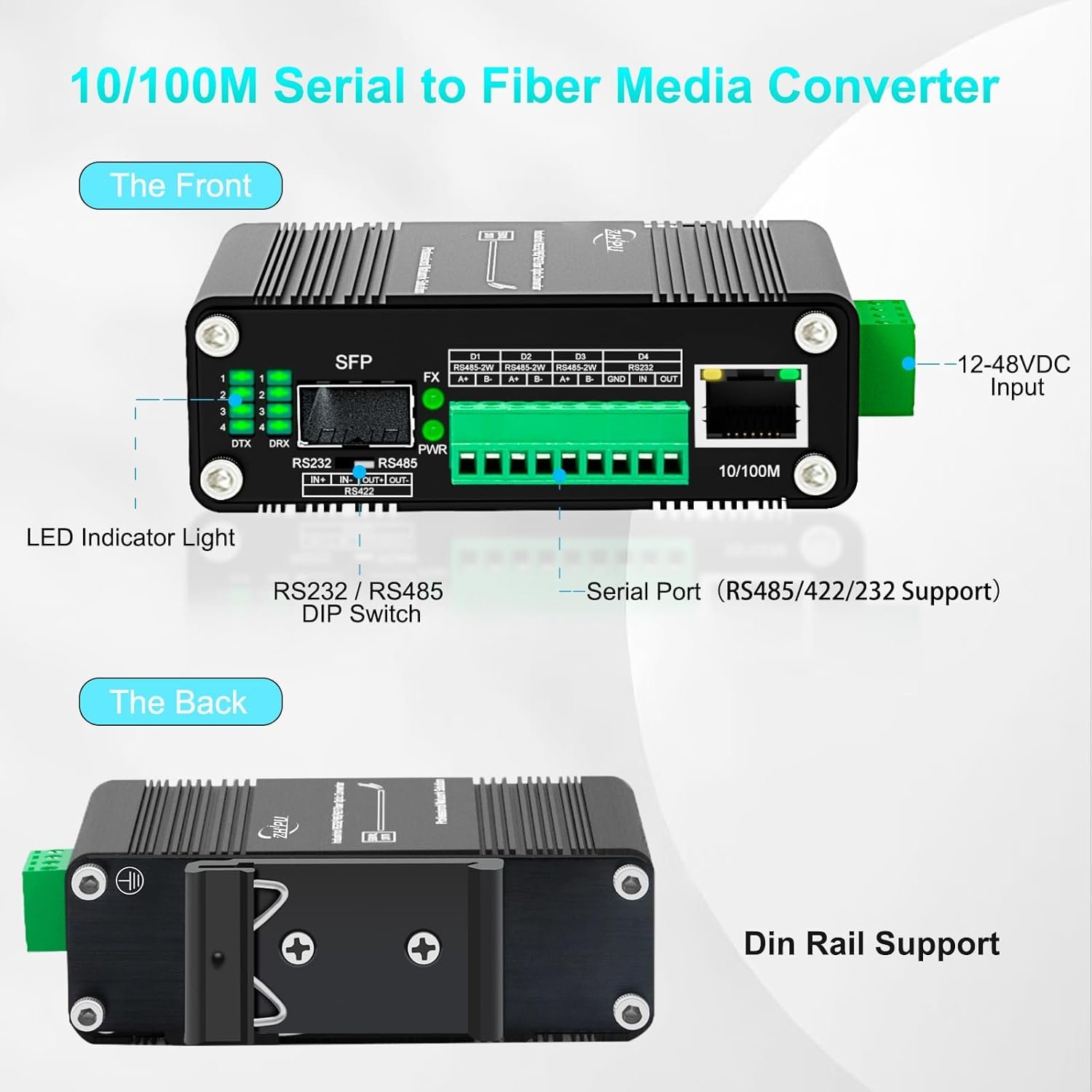

Features:

1. Supports RS232/RS485/RS422 for multiple control devices

2. 1 x 10/100M RJ45 port with auto MDI/MDI-X

3. 1 x 100M SFP port for flexible fiber connection

4. Full/Half duplex and auto-negotiation supported

5. IEEE 802.3az Energy Efficient Ethernet compliant

6. Built-in surge and ESD protection

7. 12~48V DC terminal block power input

8. Wide operating temperature: -40°C to 75°C

9. LED indicators for easy diagnostics

10. DIN-Rail and wall-mount installation supported

Specifications

Ethernet Port 1 x RJ45 (10/100Mbps), Auto MDI/MDI-X Optical Port 1 x SFP slot (100Base-FX) Serial Port 3 x RS485, 1x RS232.（2Ch RS485 can be grouped into 1Ch High Speed RS422） Standard EIA /TIA RS232/485/422 Serial Communication Distance RS232: 15m, RS485/RS422: up to 1000m Baud Rate 4800 to 460800 bps Max Frame Length 9K bytes Power Input 12–48V DC, 4-pin terminal block Power Consumption <3W, energy efficient Power Options 24W/1A 24VDC Power Supply/Open Wire for Terminal Block (sold separately) Dimensions 95 x 70 x 30 mm Weight 0.25 kg Installation Supports DIN-Rail and Wall-mount installation Operating Temperature -40°C to +75°C Certifications CE, FCC, RoHS, ISO9001

Package:

ZP-IMCRS1100-SFP*1

Wall Mount Bracket*1

User Manual*1

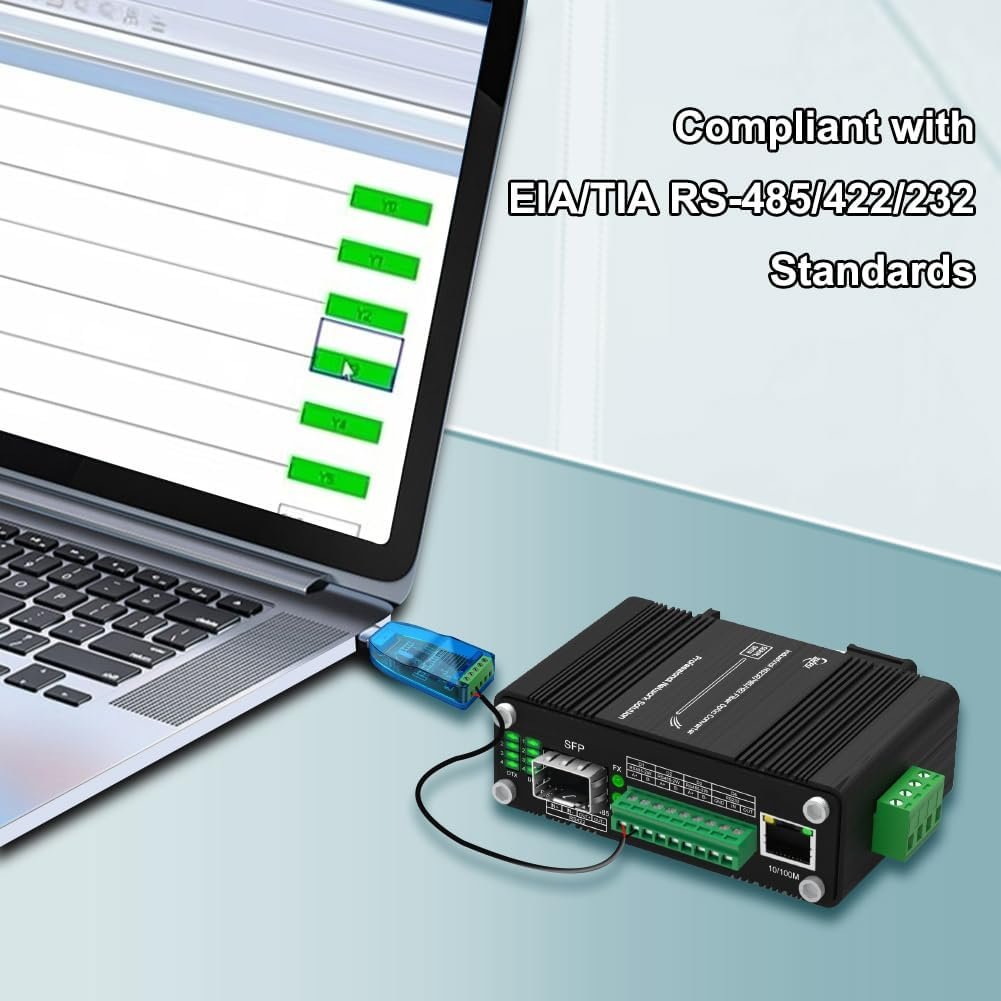

𝐌𝐮𝐥𝐭𝐢-𝐏𝐫𝐨𝐭𝐨𝐜𝐨𝐥 𝐒𝐞𝐫𝐢𝐚𝐥 𝐒𝐮𝐩𝐩𝐨𝐫𝐭——Supports RS232, RS485, and RS422 interfaces for industrial serial communication, ideal for legacy device integration over fiber.
𝟏𝟎𝟎𝐌𝐛𝐩𝐬 𝐒𝐭𝐚𝐛𝐥𝐞 𝐓𝐫𝐚𝐧𝐬𝐦𝐢𝐬𝐬𝐢𝐨𝐧——Equipped with a 100Base-FX SFP port, compatible with single-mode or multi-mode modules , supporting fiber distances up to 80km. More reliable than gigabit for stable, interference-free data transfer in industrial environments.
𝐄𝐚𝐬𝐲 𝐭𝐨 𝐔𝐬𝐞——It supports transparent transmission, self-adaptive baud rate. You don’t need to chang the user protocol, plug and play
𝐃𝐢𝐧-𝐑𝐚𝐢𝐥 & 𝐖𝐚𝐥𝐥 𝐌𝐨𝐮𝐧𝐭 𝐒𝐮𝐩𝐩𝐨𝐫𝐭——It has 35mm Din-rail mounting bracket and wall mount accessory
𝐈𝐏𝟒𝟎 𝐀𝐥 𝐂𝐚𝐬𝐞—— It uses industrial grade protection design，having 6KV lighting protection and can work at wide range temperature -25°C to 75°C (-13°F to 167°F)
𝐍𝐨𝐭𝐞！！！——The RS-232/RS-485/RS-422 serial fiber media converter must use in pairs, please order in 2pcs unless you only replace one side
