MK-SMPS-S250-12 MAKERELE 240W AC 110V-220V to DC 12V Power Supply Swit…

Price: $32.99 - $26.99
(as of Oct 25, 2025 05:35:03 UTC – Details)

Product description

Design Details Pure Copper Transformer

All copper high frequency, high conversion efficiency, reliable performance

High Quality Filter Capacitors

High voltage resistance, double filtering technology, effectively avoid signal interference, small loss, large capacity

High Electrolytic Capacitor

New High Temperature Resistant Electrolytic Capacitor, High capacity and durability

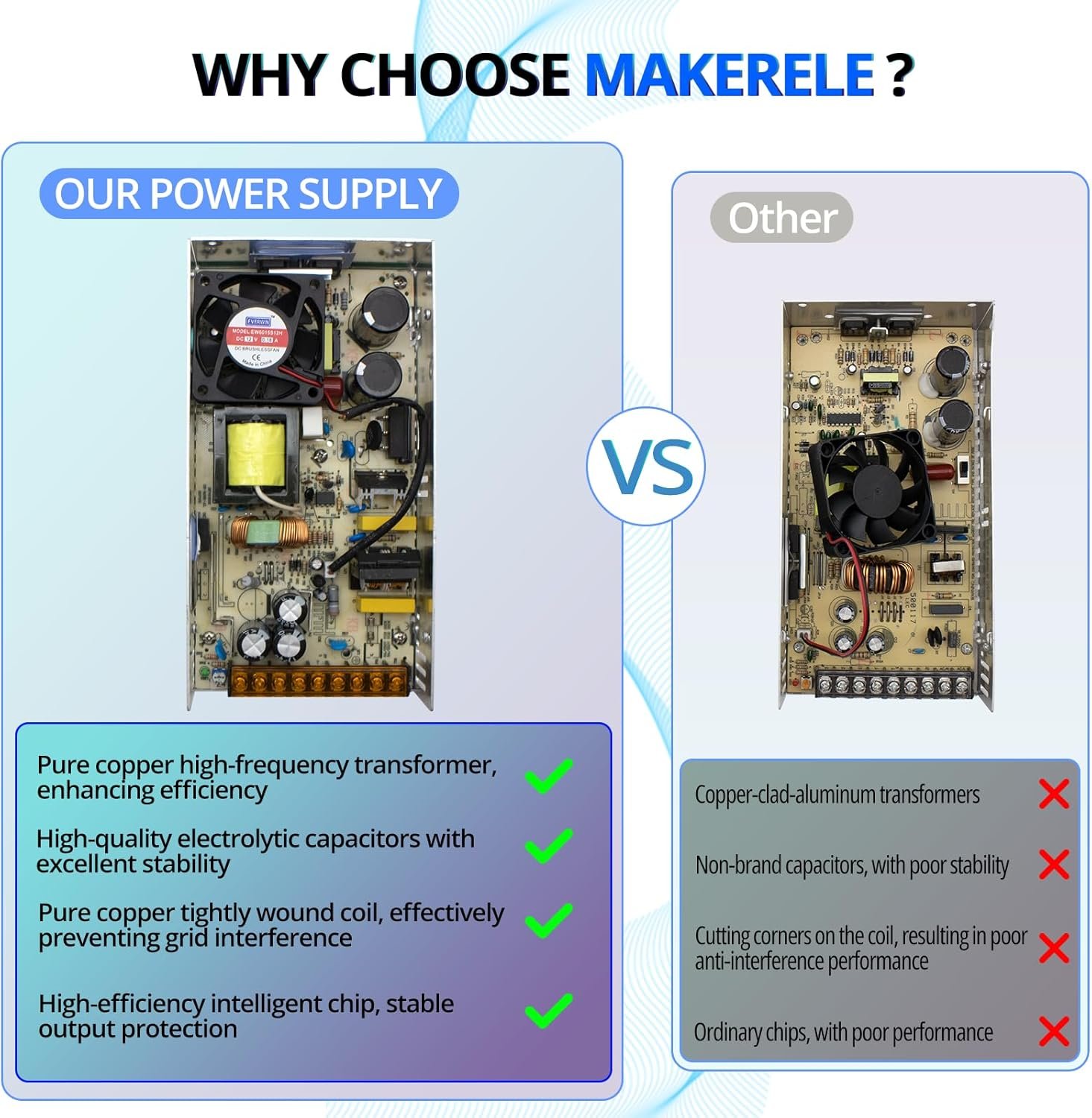

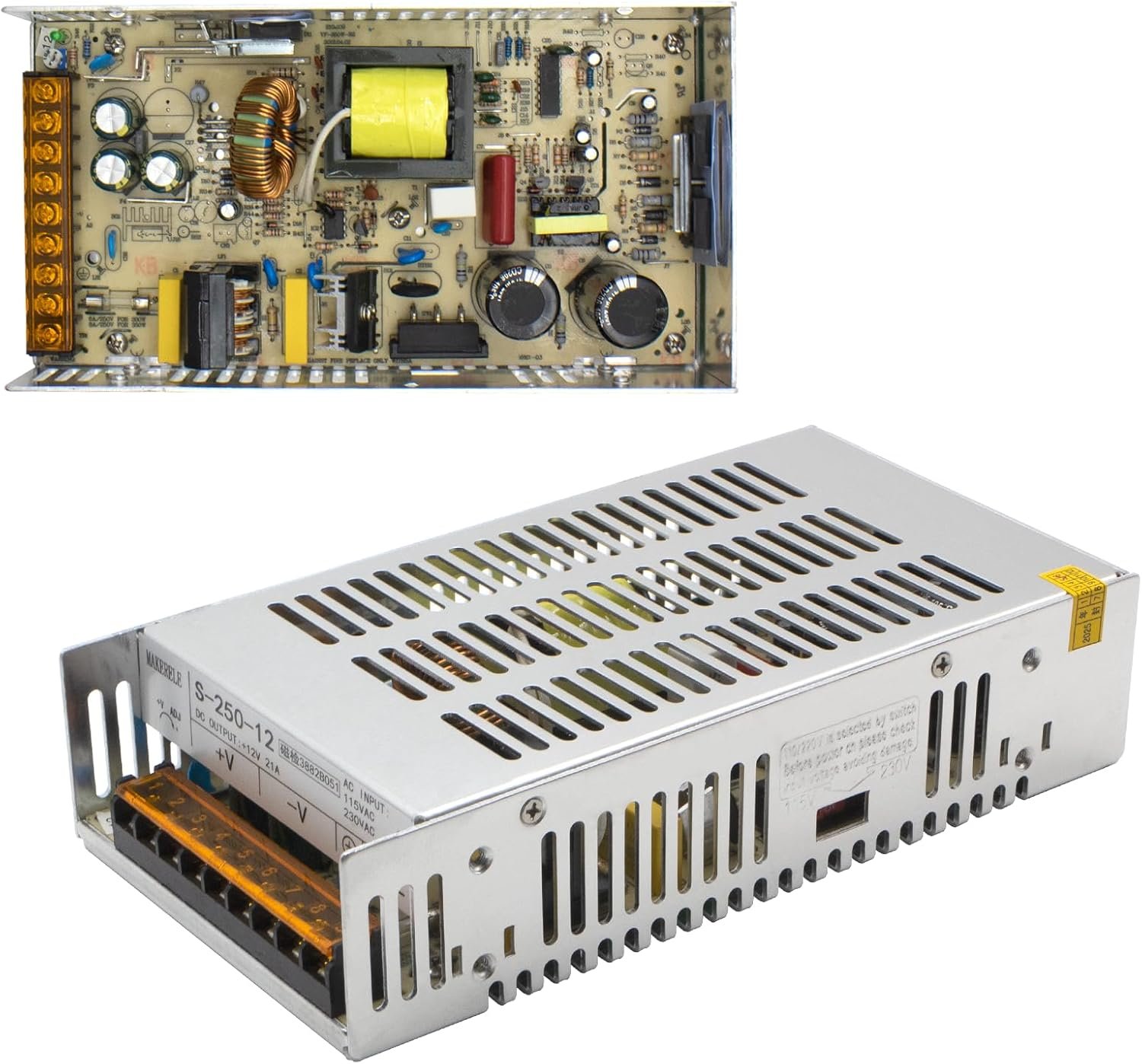

High Quality PCB Circuit Board

power supply unit is consists of a high-quality PCB circuit board, electronic components and built-in filter with strong anti-interference performance

Wide Application LED Light Electric Accessory Broadcasting Equipment CCTV Camera System

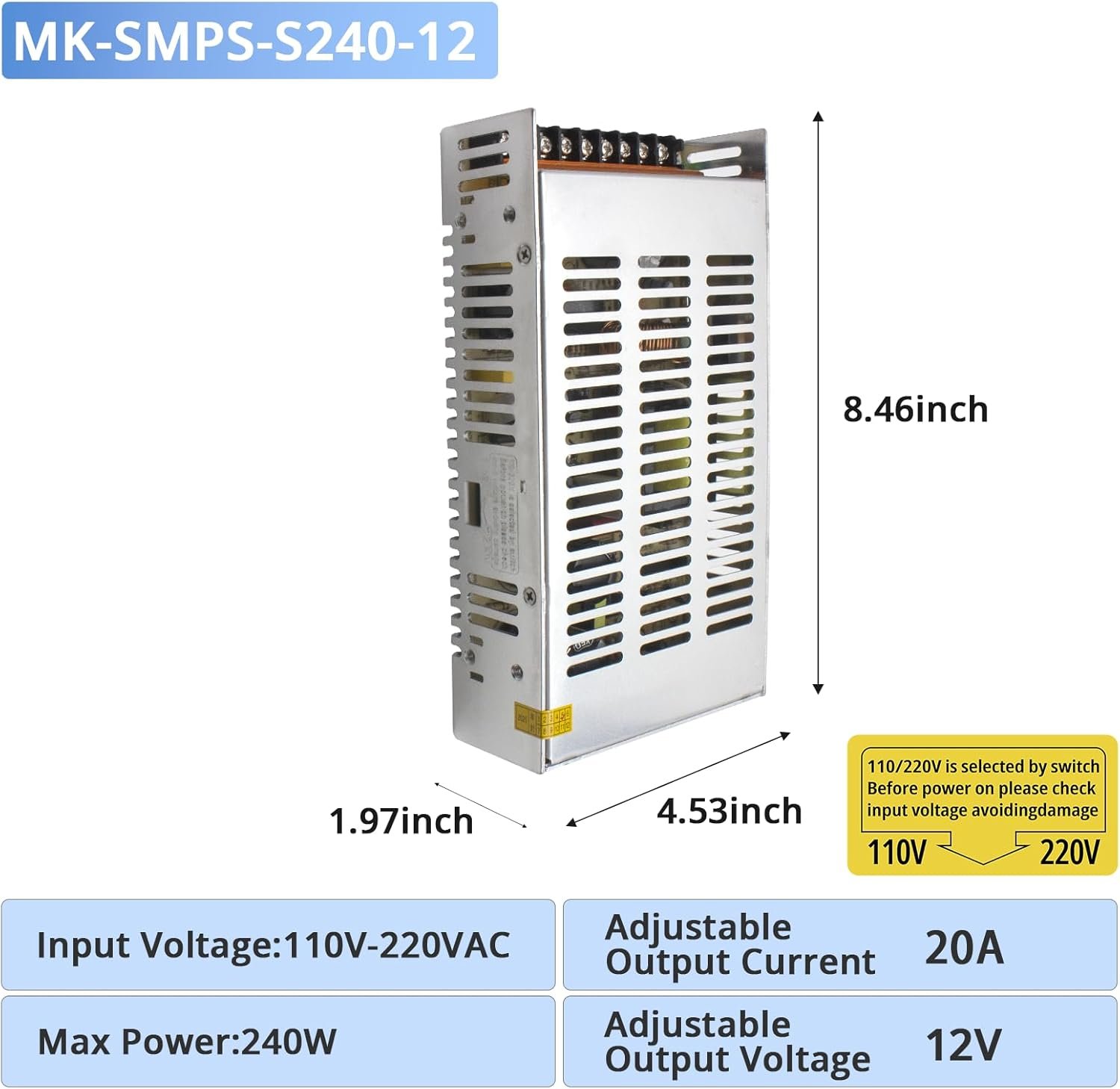

【Parameters】: Input voltage range: AC 110V-220V, 50/60Hz; DC output voltage: DC 12V, maximum rated output current: 20A, output power: 240W.
【Safe and reliable】: Switching power supply has short circuit protection, overload protection, overvoltage protection, temperature protection. Switching converter SMPS meet UL1950 requirements, meet EMC standards, built-in EMI filter to reduce ripple, soft start current design, effectively reduce AC input impact.
【Widely Applicable】:Simultaneously power devices of different currents/watts. Suitable for DC 12V pumps, PCP air compressors, winches, car jacks, car audio systems, amplifiers, radios, air compressors, LED light strips, brushless motors, household appliances, electronic devices, automation equipment, computer projects, servo systems, etc. Not suitable for: programmable / variable speed motors / PWM motors / dimmable lights / plant lights / DC power controllers.

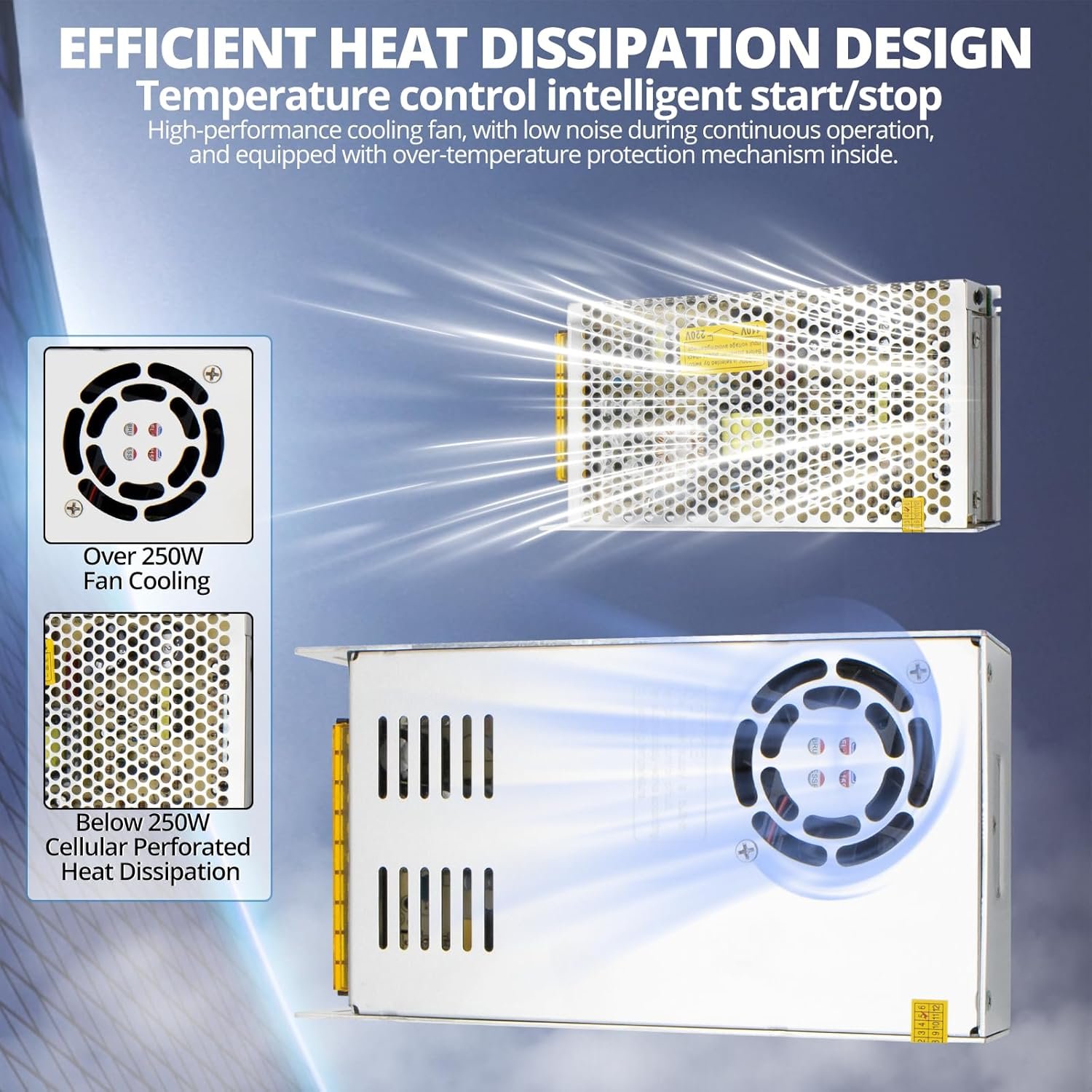

【Efficient Heat Dissipation】: The switching power supply is equipped with a thickened aluminum alloy casing and mesh-shaped heat dissipation holes, which can enhance the heat dissipation efficiency of the power supply and effectively extend the service life of the product.

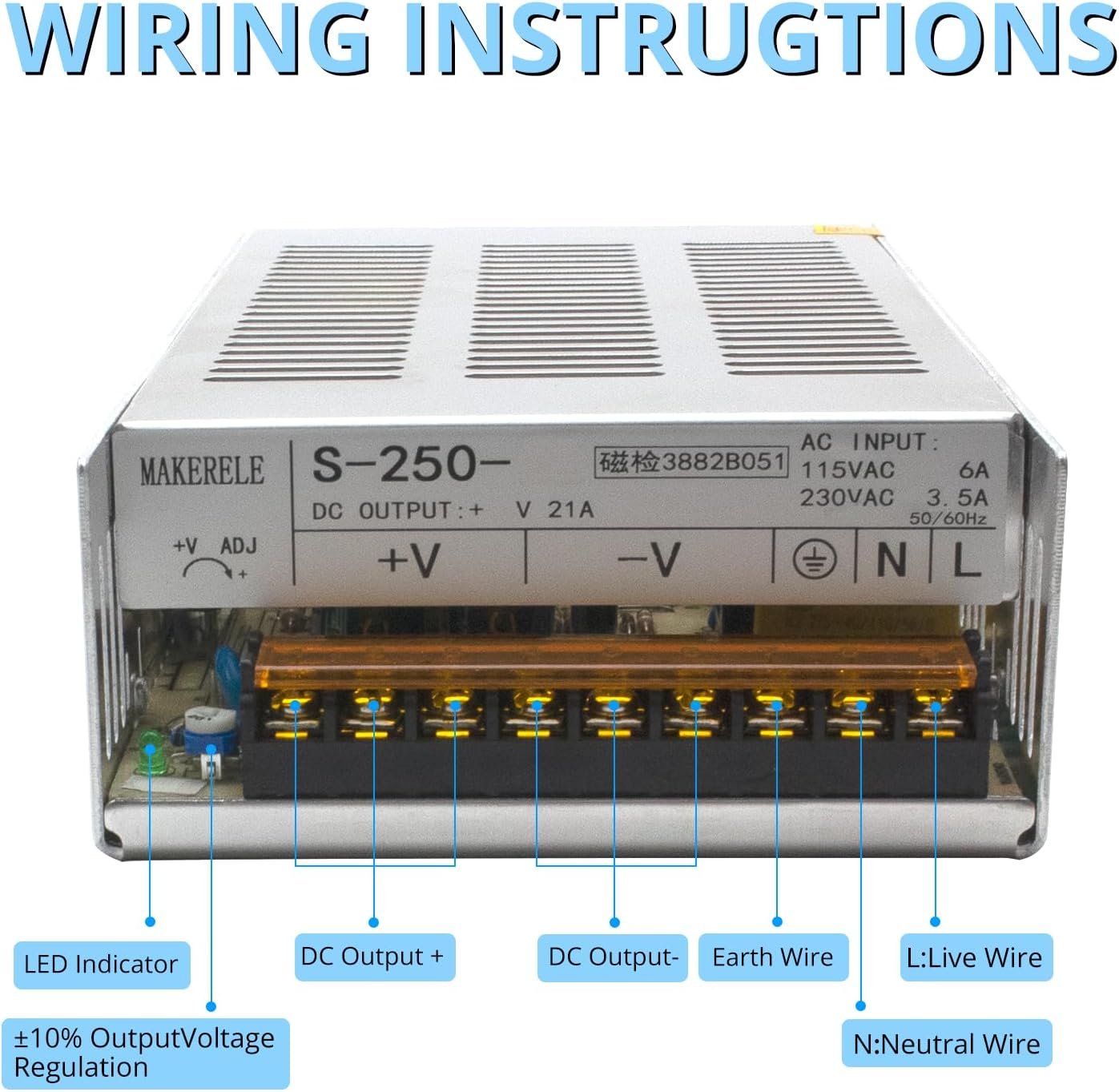

【110V/220V Universal】:Equipped with a manual switching switch, easily adjust the input voltage, compatible with socket standards in North America, Europe and Asia, etc.Important reminder: Before use, be sure to select the 110V or 220V voltage position through the switch to prevent equipment damage.
