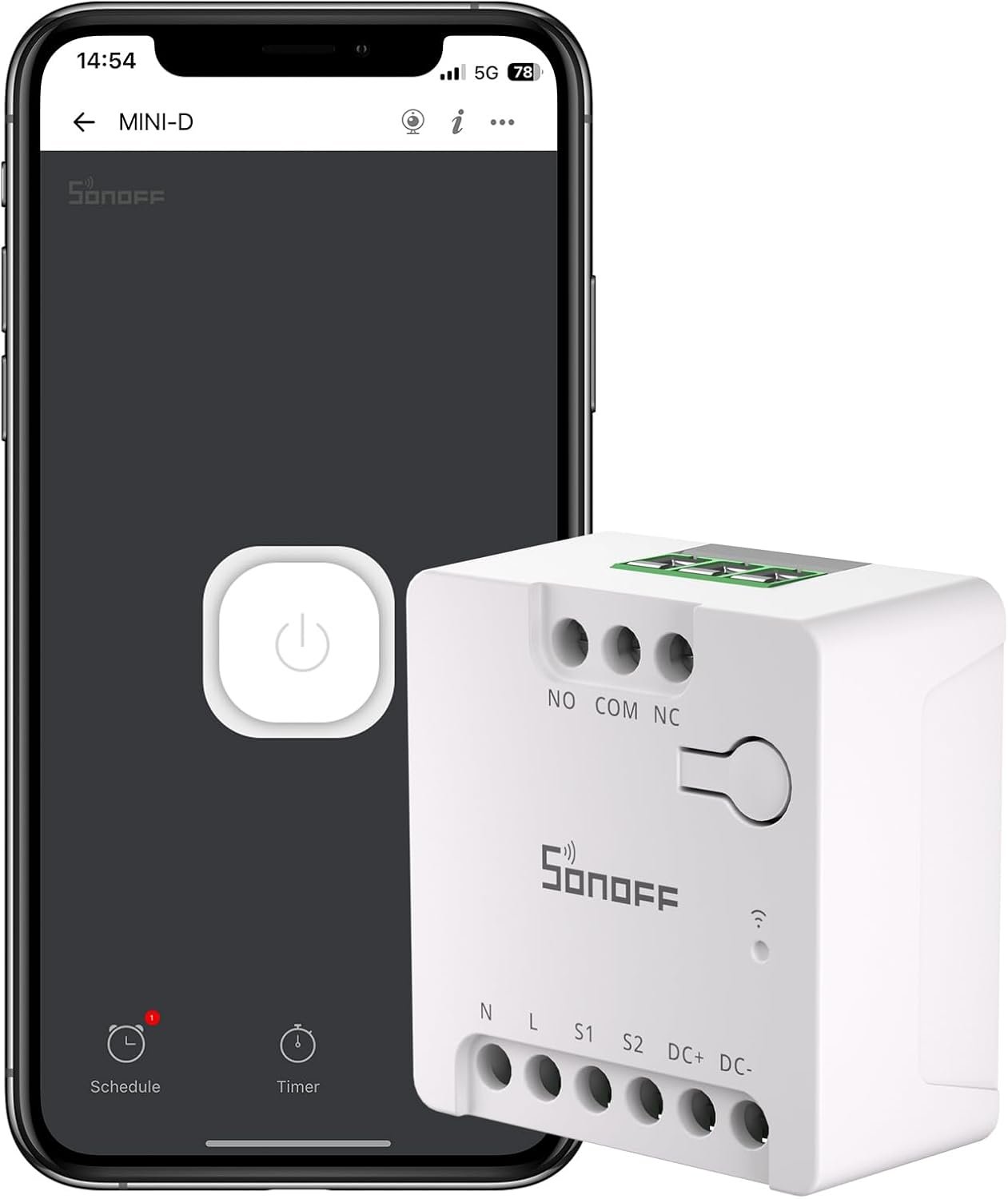

SONOFF WiFi Mini-D Smart Switch with Matter,Home Automation,Dry Contac…

Price: $17.99
(as of Aug 01, 2025 02:44:32 UTC – Details)

Product Description

1 Seamless Integration

2 Stable Local connection

3 Platform Compatibility

Upgrade Your Garage Door

Make your garage door smart with MINl-D which offers remote control and seamless automation

Smart lrrigation System

Specifically engineered to control DC low-power solenoid valves or motorloads up to 8W

Thermostat Automation System

Integrated with other smart homedevices, which not only enhances convenience but also helps reduceenergy consumption

For Contactor Control

A low-power control circuit can safelyand efficiently manage high-power systems when integrated with the contactor

Model MINI-D Rating 100-240V~ 50/60Hz 0.1A Max OR 12-48V⎓1A Max μ Load 24V⎓2A Max Resistive load OR 12/24V⎓8W Motor load Wireless Connectivity Wi-Fi: IEEE 802.11 b/g/n 2.4GHz Net Weight 34.5g Dimension 41x43x21.5mm Casing Material PC Applicable Place Indoor Working Temperature 10T40 (-10℃~40℃) Working Humidity 5%~95% RH, non-condensing Working height Less than 2000m NOTE 1 Please install and maintain the device by a professional electrician. To avoid electric shock hazards, do not operate any connection or contact the terminal connector while the device is powered on! NOTE 2 Make sure all wires are connected correctly. AC and DC are not supported as power input at the same time! NOTE 3 To ensure the safety of your electrical installation, it’s essential either a Miniature Circuit Breaker (MCB) or a Residual Current operated Cicuit-breaker with Integral Overcurrent protection(RCBO) with an electrical rating of 10A that meets national safety standards has been installed before the MINI-D. An overcurrent protection device with a rated current of 3A needs to be used in the control circuit of the MINI-D. NOTE 4 Under normal use of condition, this equipment should be kept a separation distance of at least 20 cm between the antenna and the body of the user. NOTE 5 Is only support the 2.4ghz router wifi, is not support 5ghz router wifi.

【Dry Contact Output】SONOFF MINI-D switch supports dry contact output, with both Normally Open (NO) and Normally Closed (NC) options. It can control devices such as boilers, garage doors, and access control systems that are operated by dry contact signals.
【Supports DC low power motors/solenoid valves】Suitable for small DC motors and solenoid valves up to 8 W (MINI-D outputs are not suitable for AC circuits).
【Matter Protocol】Platforms that support the Matter protocol require a Matter hub when integrating with Matter-enabled systems, such as Home Assistant, Alexa, Google Home, Apple Home, and more.
【Supports AC/DC Input】Supports both AC and DC input, ensuring flexible installation in various environments. Please note, the MINI-D input cannot be connected to both AC and DC simultaneously. You must choose either AC or DC for the input, but not both at the same time.
【SONOFF Customer Service】SONOFF is a leading global brand in smart home devices, providing you with a convenient, secure, efficient, and comfortable smart living experience – your choice for smart home solutions. We offer professional support and after-sales service for our customers.
