Stetsom STX 2436 Bluetooth DSP PRO – Digital Signal Processor, DSP PRO…

Price: $109.99 - $92.00
(as of Jul 17, 2025 20:52:43 UTC – Details)

Product Description

The STX2436BT is a digital audio processor that offers a variety of high-precision adjustments and settings to enhance the performance of your audio system. Through Bluetooth communication, the processor’s information can be viewed and configured remotely using smartphones with Android or iOS systems. Its digital signal processor (DSP) allows real-time modification of equalizations, crossover filters, alignment, gain control, phase inversion, limiter, digital input/output routing, and other treatments.

Its exclusive remote sequencer feature (SEQUENCER) makes it possible to configure the programmed startup and shutdown of up to three products from the remote startup connections (S1, S2, and S3).

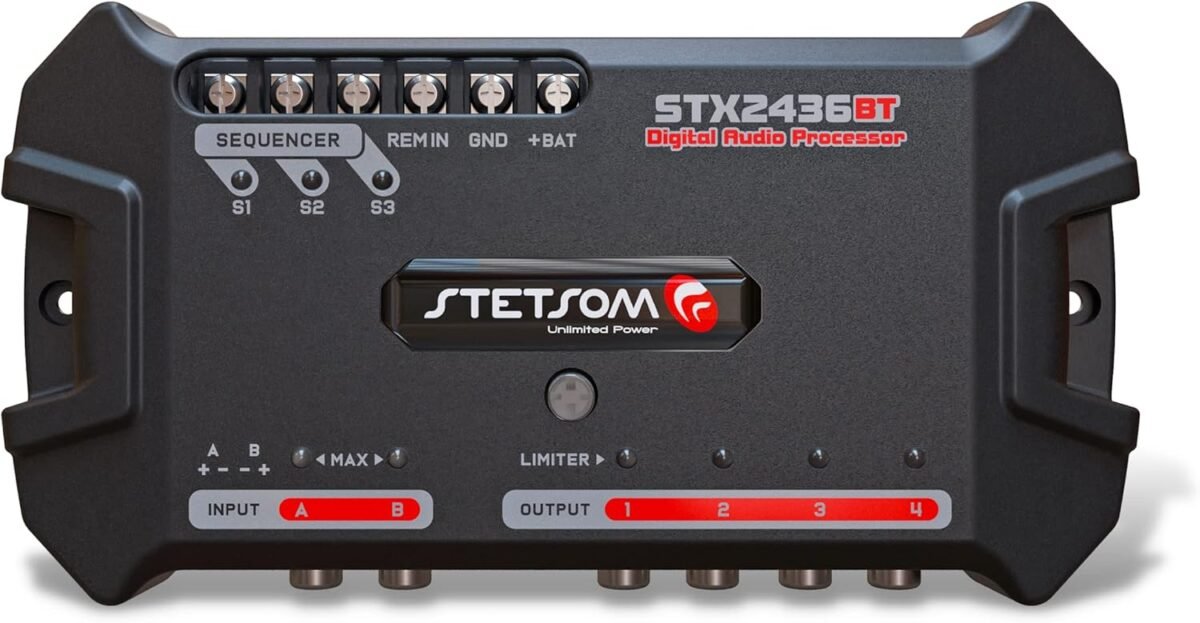

1. SEQUENCER 2. REM IN

3. NEGATIVE POWER CONNECTOR (GND)

4. POSITIVE CONNECTOR (+BAT)

5. SMC INPUT

6. AUDIO INPUT WITH WIRE CONNECTION (HIGH INPUT)

7. AUDIO INPUT WITH RCA CONNECTION (INPUT)

8. MAX LEDs (INPUT CHANNELS)

9. COMMAND BUTTON

10. AUDIO OUTPUTS CHANNELS (OUTPUT)

11. LIMITER LEDs (OUTPUT CHANNELS)

Technical Specifications

Number of Channels Input: 2 x RCA (A+B) or 2 x HIGH INPUT (A+B) Output: 4 (1, 2, 3, 4) Graphic Equalizer 15 Bands (gain ±12dB) Graphic Equalizer Presets 12 Parametric Equalizer 5 Bands (1 Input + 4 Output) (gain ±12dB, Factor Q 0.4 a 10.0) Crossover with Variable Freq. Butterworth: 12/18/24/36 dB/8ª Linkwitz-Riley: 12/18/24/36 dB/8ª Crossover Presets 11 Routing between input/output A, B ou A+B Alignment 0ms ~ 8ms (275cm) Phase Inversion 0° ~ 180° Limiter Threshold: -24dB ~ 0dB Attack: 0.1ms ~ 100.0ms e Release: 1ms ~ 1600ms (manual or auto.) Master Level 0 ~ 100% Output Gain -45dB ~ +15dB per output Frequency Generator 10Hz ~ 22kHz and Level -60 ~ 0dB Frequency Scan Starting and ending frequency: 10Hz ~ 22kHz Level: -60dB ~ 0dB Pink Noise Generator Gain: -60dB ~ 0dB Battery Voltage Monitor Current, minimum and maximum voltage

Password 6-digit password Input Impedance RCA: 28 kΩ / FIO: 1 kΩ Output Impedance 47 Ω Signal to Noise Ratio > 90dB Total Harmonic Distortion < 0,01% T.H.D. Channel Separation > 80dB Frequency Response 10Hz ~ 22kHz @ 0dB Max. Input Voltage RCA: 5,6 Vpp (+8,2 dBu) HIGH INPUT: 15 Vpp (+18 dBu) Max. Output Voltage 5,6 Vpp (+8,2 dBu) Power Supply 10V ~ 15V DC Max. Output current SEQUENCER 180 mA per output Rated Current Consumption 170mA @ 12.6V DC Maximum Current Consumption 710mA @ 12.6V DC Protection Short Circuit (PTC fuse) Bluetooth Version Low Energy (LE) Range 15 meters*

Compatibility Android 5.0 or higher iOS 12 or higher Dimensions (H x W x L) 1.3” x 3,8” x 7,4” Weight 0.40 Lb Compatible SMC Remote Control Sold Separately

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars 588

4.6 out of 5 stars 113

4.4 out of 5 stars 174

4.4 out of 5 stars 219

Price

$83.00$83.00 $139.99$139.99 $64.00$64.00 $92.00$92.00

Sequencer Remote

✓

✓
X
✓

Graphic Equalizer 15 bands

✓

✓
X
✓

Crossover

✓

✓

✓

✓

Number of Channels (Outputs)
4 8 5 4

Delay Adjustment

✓

✓
X
✓

Security Lock Password

✓

✓
X
✓

Limiter

✓

✓

✓

✓

Gain Adjustment

✓

✓

✓

✓

Crossover Presets
X
✓
X
✓

Copy Channel
X
✓
X
✓

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 7.48 x 3.94 x 1.57 inches; 4.59 ounces
Item model number ‏ : ‎ 20348
Date First Available ‏ : ‎ September 13, 2017
Manufacturer ‏ : ‎ Stetsom
ASIN ‏ : ‎ B075JX8TTG
Customer Reviews: 4.4 4.4 out of 5 stars 219 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
Compact, Bluetooth, Android and Apple APP available, Smartphone and Tablet enabled
This device will give you an amazing range of customizable sound adjustments from the most wanted 12 Band GRAPHIC EQUALIZER to a simple 6-digits password to protect your setup
Android 5.0 or higher iOS 12 or higher
The Bluetooth can reach a range of up to 49 feet in a unobstructed area
RCA and HIGH INPUT for factory original stereo player
