Video Wall Controller 2X2,HDMI 4K LED Video TV Wall Processor with RS2…

$55.00

11 People watching this product now!

Payment Methods:

Payment methods

Description

Price: $55.00
(as of Jul 21, 2025 20:59:07 UTC – Details)

Product Description

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

3.6 out of 5 stars 12

4.8 out of 5 stars 10

5.0 out of 5 stars 2

Price

$55.00$55.00 $58.00$58.00 $68.00$68.00

connector Type
HDMI HDMI HDMI

HDMI Number of Ports
7 5 10

Input Ports
HDMI HDMI+DVI HDMI+DVI

Splitting Modes
14 8 23

Support Monitors
4 6 9

Maximum Resolution
4K@30Hz /1080P@60Hz 4K@30Hz /1080P@60Hz 4K@30Hz /1080P@60Hz

RS232 Port

Remote Control

Panel buttons

4K 2×2 Video Wall Controller

Video Wall controller 2X2Video Wall controller 2X2

4K 2×2 Video Wall Controller – This device splits a single high-definition HDMI or DVI input signal into four segments and distributes them across four HDMI outputs, enabling seamless video wall configurations. It supports 5.1-channel audio output via optical fiber and features RS232 control for system integration. Ideal for creating large-scale dynamic displays, it synchronizes four HDMI-compatible screens (such as LCD TVs or rear projection units) into one cohesive, high-resolution video wall.

180° Rotation mode180° Rotation mode

High-Definition Video Wall Controller

Input Compatibility: Supports HDMI 1.4 and HDCP 1.4, accepting resolutions up to 1920×1080P @ 25/30/50/60Hz and 3840×2160P (4K) @ 24/30Hz.Output Resolution: Delivers crisp 1920×1080P @ 60Hz to each display unit.Signal Processing: Input formats include RGB/YUV 24-bit, while output maintains RGB444 24-bit for superior color accuracy.True-to-Source Quality: Faithfully reproduces images with no loss of detail, ensuring natural, vibrant, and lifelike visuals.Audio Support: 5.1-channel surround sound output via optical fiber for immersive audio-visual synchronization.

MODESMODES

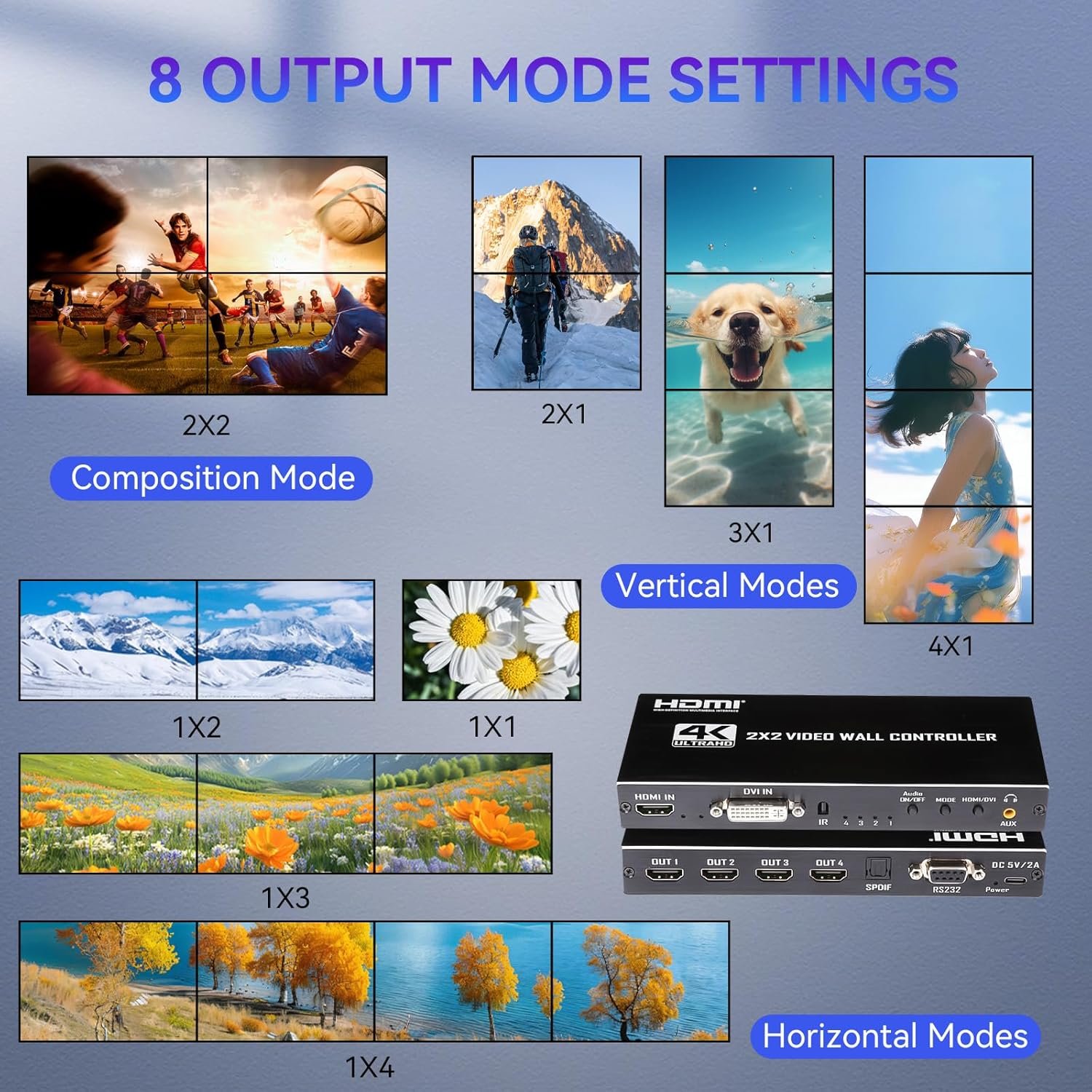

This video wall controller offers 8 different splicing modes, with 7 of them (2×2, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1) supporting 180° screen rotation—only 1×1 mode does not include this function.

Important Notes:

Rotation is only available for Output 1 and Output 2.Both input and output resolutions must not exceed 1080P@60Hz for proper functionality.

This feature allows flexible display adjustments while maintaining high-definition video quality.

FEATURESFEATURES

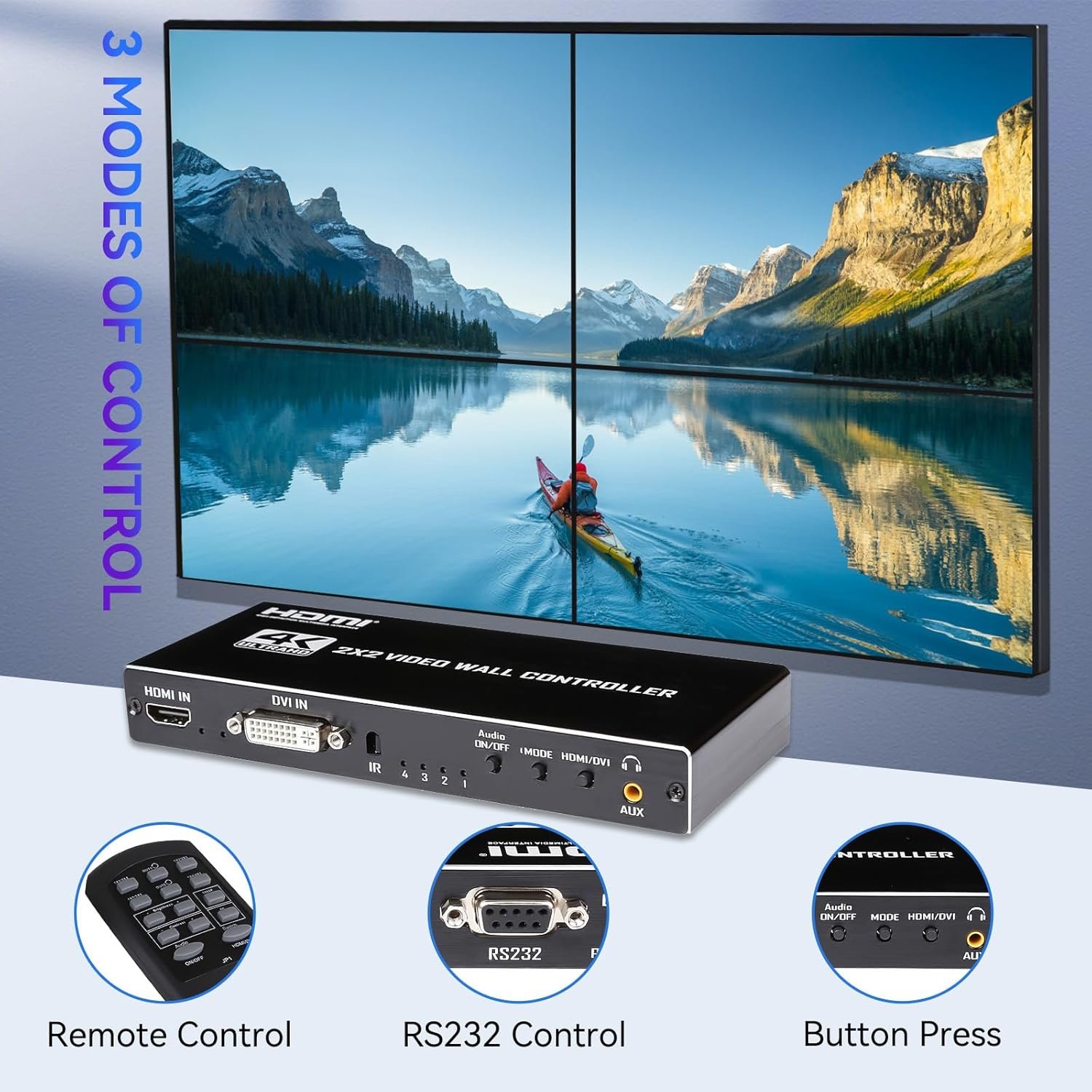

Simple Setup & Intuitive Control

This user-friendly video wall controller features plug-and-play operation with no drivers required—just connect and start using it immediately.

For convenient adjustments, it includes:

An IR remote control (powered by AAA battery, battery not included)Manual control buttons on the device for quick settings

Whether using the remote or the onboard controls, managing your display setup is effortless and hassle-free.

PLUG & PLAYPLUG & PLAY

Versatile 8-Mode Video Wall Controller

This high-performance controller offers 8 flexible display modes (2×2, 1×1, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1) to meet diverse video wall configurations.

Premium Durability & Performance:

Robust metal casing for superior anti-interference, corrosion resistance, and heat dissipationGold-plated connectors minimize signal loss and enhance transmission efficiencyReal-time processing ensures seamless, lag-free video output

Built for reliability and longevity, it delivers crisp, uninterrupted visuals in any multi-screen setup.

Application ScenariosApplication Scenarios

This video wall controller No need for drivers, plug and play.Ideal for advertising, entertainment, and information display. It is compatible with PC,PS4,PS4 Pro,laptops,HDTVs,projectors,monitors.Let us enjoy movie-grade picture quality at home anytime.

✅ 【Seamless 4K Video Wall controller 2X2 】 Transforms 4 individual TVs/displays into one large dynamic video wall by splitting a single HDMI/DVI 4K input into 4 synchronized HDMI outputs.Delivers synchronized HDMI outputs for seamless video walls. Perfect for digital signage, control rooms, exhibitions, and more!
✅【8 Splicing Display Modes】This video wall controller can distribute 1 HDMI or DVI input to 4 HDMI outputs and supports 8 modes of 1×1,1×2,1×3,1×4,2×1,2×2,3×1,4×1,can be controlled directly through the button, IR remote or or RS232 control
✅【Easy to Operate and Widly Compatibility】This video wall controller No need for drivers, plug and play.Ideal for advertising, entertainment, and information display. It is compatible with PC,PS4,PS4 Pro,laptops,HDTVs,projectors,monitors.Let us enjoy movie-grade picture quality at home anytime
✅【180° Screen Rotation:In 2×2 mode】the TV wall processor also has the function of 180° mirror flip per screen, significantly reducing the LCD splicing gap and minimizing image distortion caused by excessive side seams
✅【UHD Resolution and Optical Audio OUT】This Video wall controller supports 4K 30Hz input and 1080p 60Hz outputs.It also supports 5.1 CH and 3.5mm audio output over optical fibers, You can choose different audio interfaces according to your audio interface
✅【What You Get】HDMI 2×2 Video Wall Controller x1, IR Remote(without battery) x1, Power adapter x1, User Manual x1
